Aversa EHP18 V8.0 SUS304 Soft-Close Cabinet Hinge

EHP18-SUS304V8.0

$15.88 SGD
$15.88 SGD
Shipping calculated at checkout.
Dimension:

With 3D Adjustment

  • Pressure adjustment capability for soft closing of movable parts
  • Made mainly from SUS304 stainless steel
  • Silver plating to prevent rust and corrosion
  • V8.0 damper upgraded to 80,000 cycles
  • SGS 96-hour salt spray tested (Grade 7)

Excel soft-closing hinge offers optimum flexibility in operating movable units like doors with top-notch efficiency. Made mainly from SUS304 stainless steel, the hinge is a reliable, durable and sustained high performer. The device comes accompanied with an adjustable mounting plate that can be tweaked to vary the pressure you want to apply on the movable parts attached to the hinge.

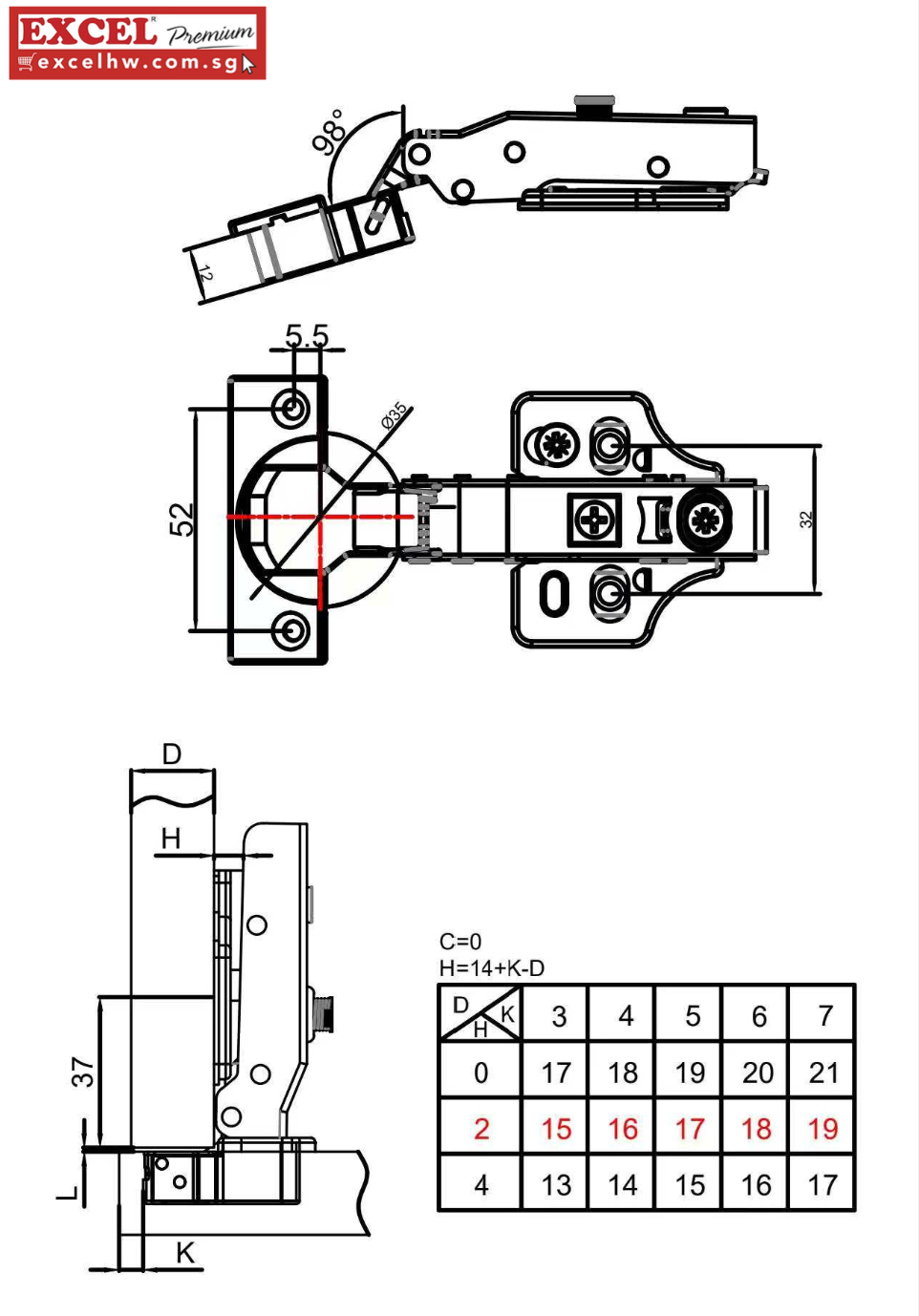

Measurements

Width 63mm
 Opening Degree 95°
Depth 117mm

Diameter of Hinge Cup

 35mm

Range of Door Thickness

 13-21mm Height of hinge Cup 11mm
3D Adjustment Yes Dimension of Door 3-6mm

Specifications

  • Cup Hole: ⌀35mm
  • Material: Mainly SUS304 stainless steel
  • Front Screw Hole-to-Hole: 48mm
  • Back Screw Hole-to-Hole: 33mm
  • Download Full Specifications
