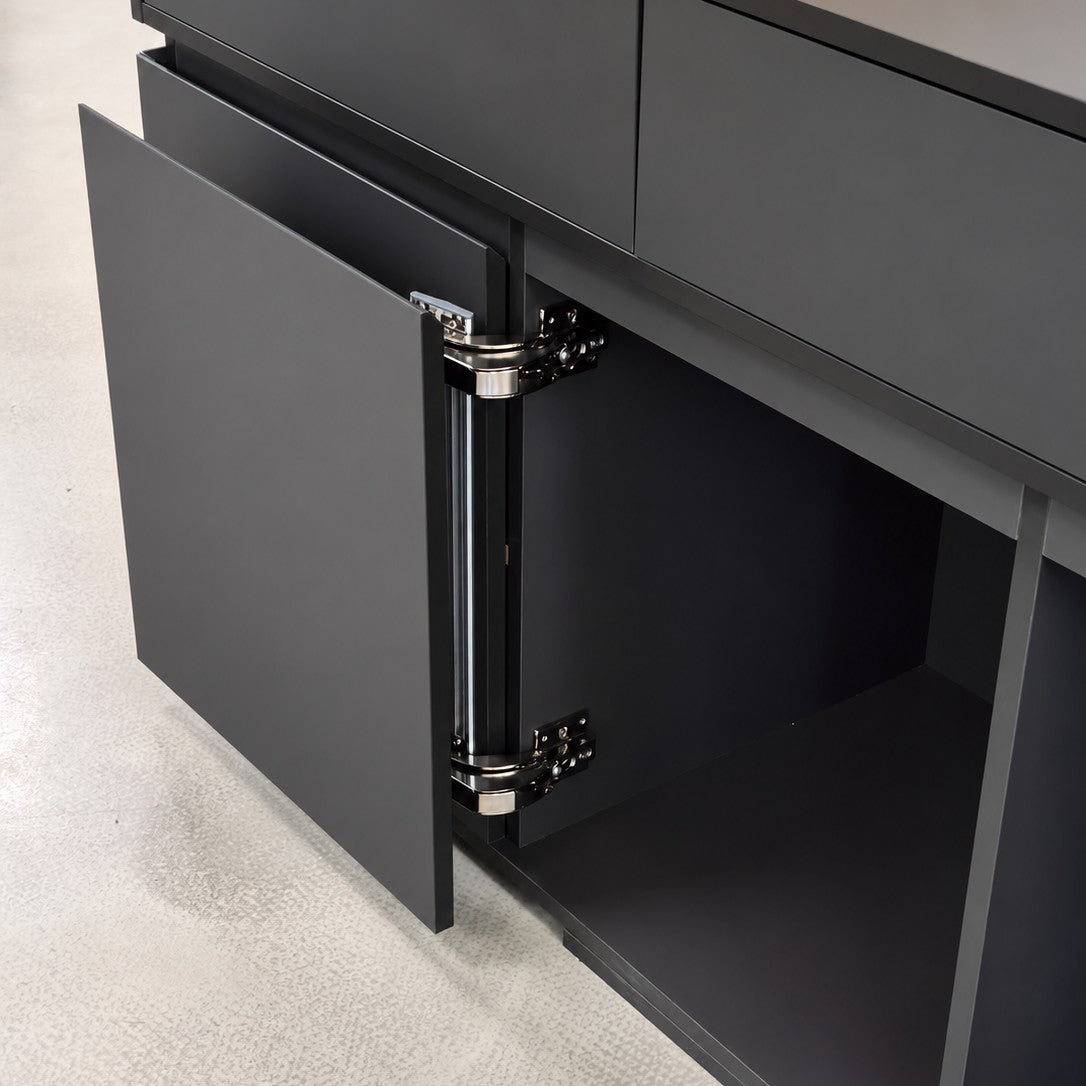

The Battente bus-style cabinet door hinge set gives cabinet doors a bus-style opening motion, using two linked hinge bodies joined by a connecting strip. It suits doors 400-500mm wide and 600-900mm high, up to 9kg per door leaf, making it a practical choice for kitchen and storage cabinets in HDB flats and condos. Designed for homeowners, interior designers and contractors.

• Bus-style opening motion for doors 400-500mm wide and 600-900mm high
• Carries up to 9kg per door leaf, for door thicknesses of 15-24mm
• Fits a standard 35mm hinge cup hole, minimum 11mm deep
• Three-way adjustment: left/right, depth and height
• Works for left-hand or right-hand doors (mirrored set-up)

Which size do I need?

Specifications

• Door width: 400-500mm
• Door height: 600-900mm
• Door thickness: 15-24mm
• Maximum door weight: 9kg per door leaf
• Minimum cabinet internal height: 560mm
• Hinge cup hole: 35mm diameter, minimum 11mm deep
• Connecting strip length: 540mm
• In the box: 2 main hinge bodies, 2 base plates, 1 connecting strip, 2 connecting-strip covers, 2 cup covers, 6 flat-head 3.5 x 15mm screws, 8 round-head 3.5 x 15mm screws
• Installation Manual

How to install

• Drill two 35mm cup holes in the door, 22.5mm from the door edge and 245mm above and below the door centreline.
• Fit the cup covers, then fix the main hinge bodies to the door with the 3.5 x 15mm round-head screws, keeping the base flat against the door.
• Join the two hinge bodies with the connecting strip and fit the strip covers.
• Fix the two base plates to the cabinet side panel, 245mm above and below the cabinet centreline, with the 3.5 x 15mm flat-head screws.
• Hang the door on the base plates, leaving a 2mm gap on both sides of the door, tighten all screws and test the movement.

FAQ

What door size does it fit?

Doors 400-500mm wide, 600-900mm high and 15-24mm thick, in a cabinet with at least 560mm internal height.

How heavy can the door be?

Up to 9kg per door leaf.

Can I use it on a left-hand or right-hand door?

Yes. The set-up is mirrored for a right-hand door.

How do I adjust the door after installation?

Turn the horizontal screw to move the door left or right. For depth or height, loosen the matching adjustment screw, set the door and retighten. Adjust the upper and lower hinges the same way.
