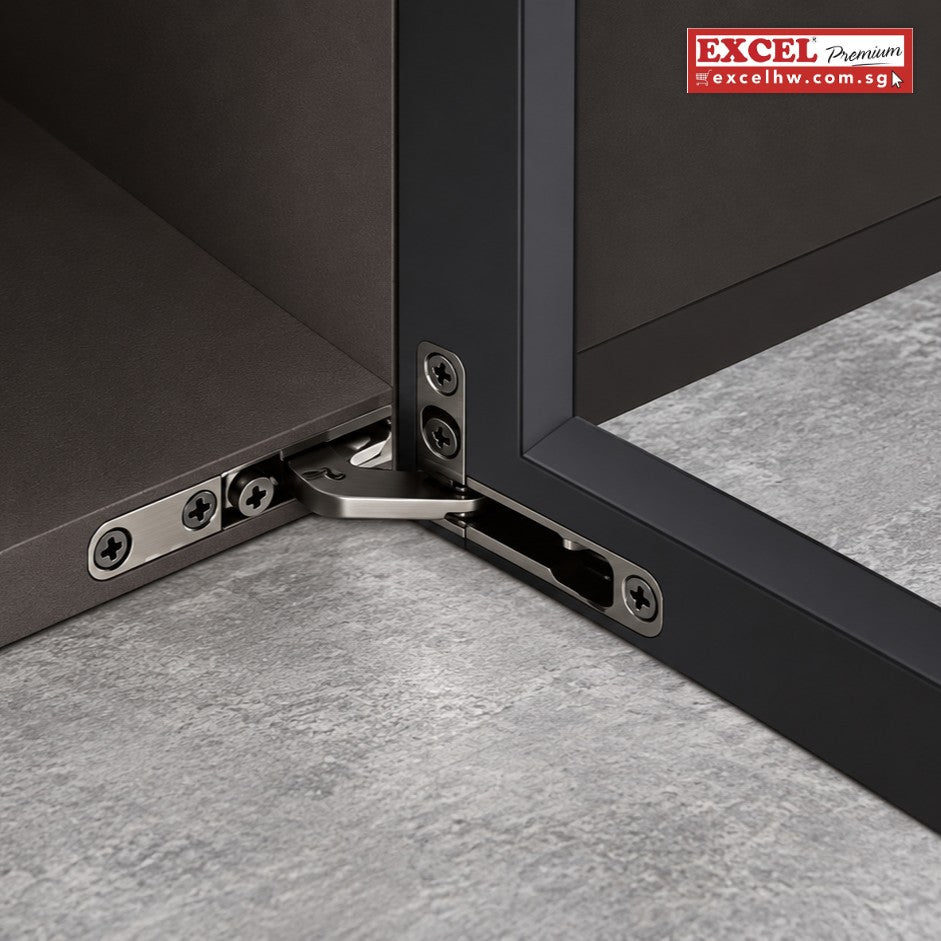

The Girova top and bottom concealed hinge fits into the top and bottom edges of a cabinet door, so no hinge cup or arm shows on the inside face. It suits 18–28 mm wooden or aluminium-frame doors up to 20 kg, making it a clean choice for wardrobes, tall cabinets and glass-panel frame doors in HDB flats and condos. Homeowners get a minimalist look, while interior designers and contractors get one hinge for both wooden and aluminium-frame doors.

• Hidden fitting at the top and bottom of the door for a clean, handle-to-hinge minimalist look
• Works with both 18–28 mm wooden doors and aluminium-frame doors
• Holds doors up to 20 kg, 2100 mm high and 600 mm wide, so it suits tall wardrobe doors

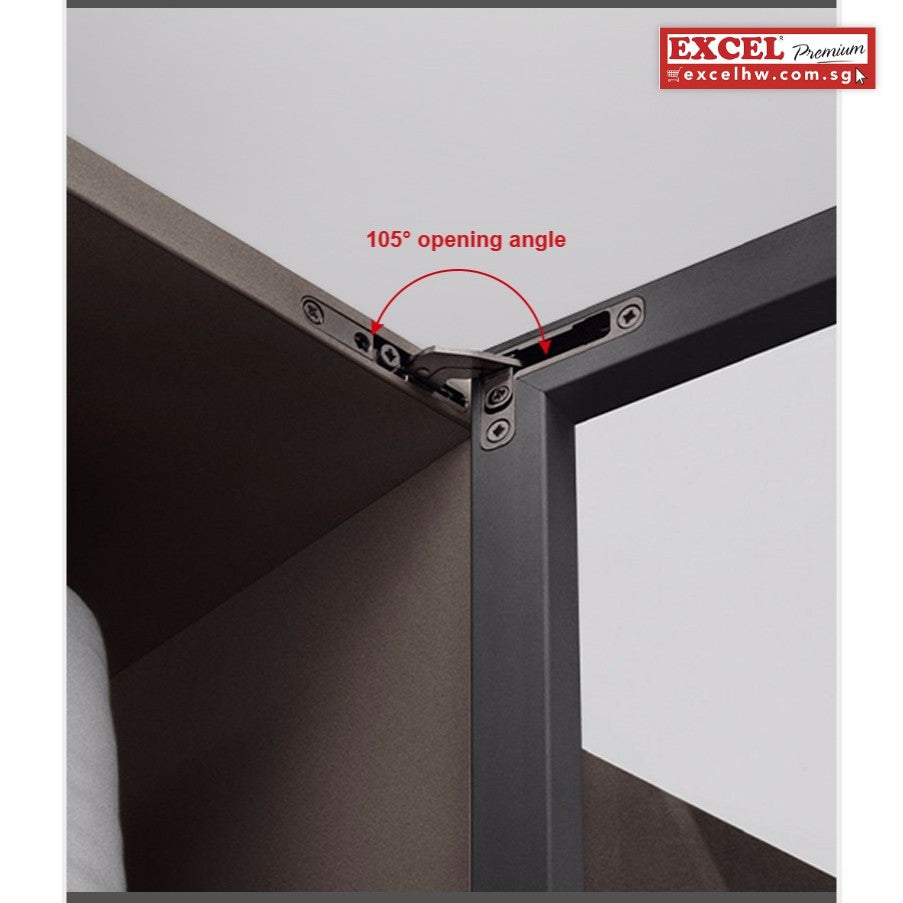

• Opens to 105° for easy access to the cabinet

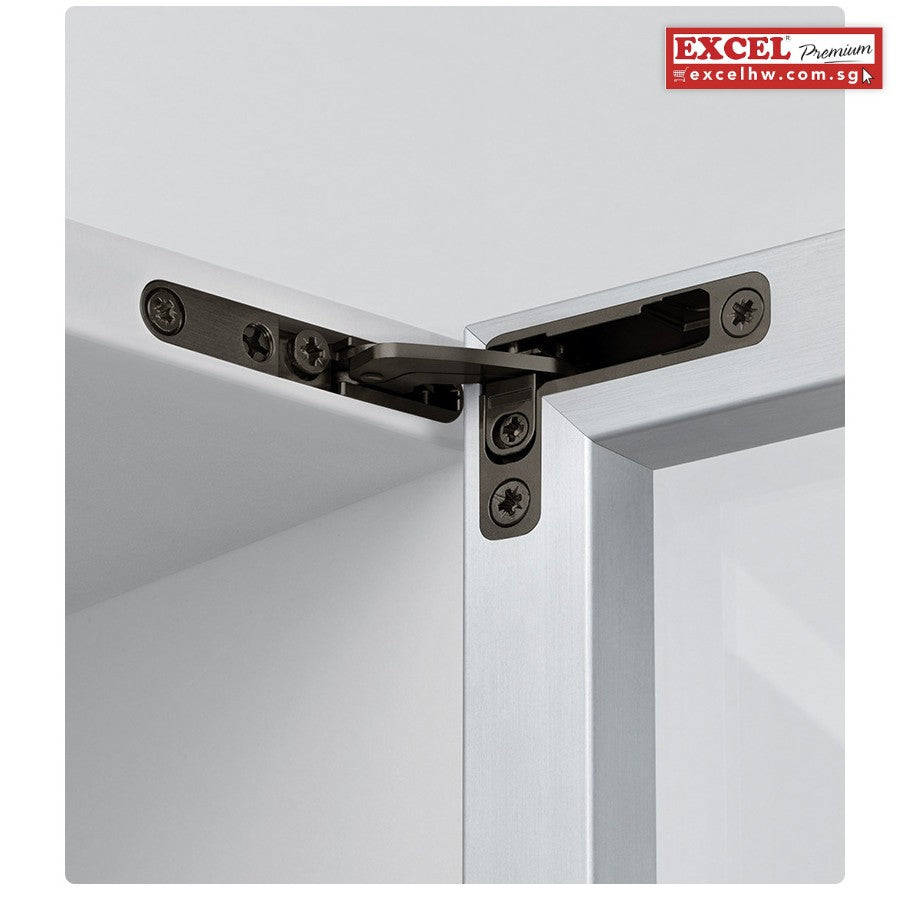

• Aluminium-frame doors join with corner connectors and the supplied screws, with no visible hinge on the frame

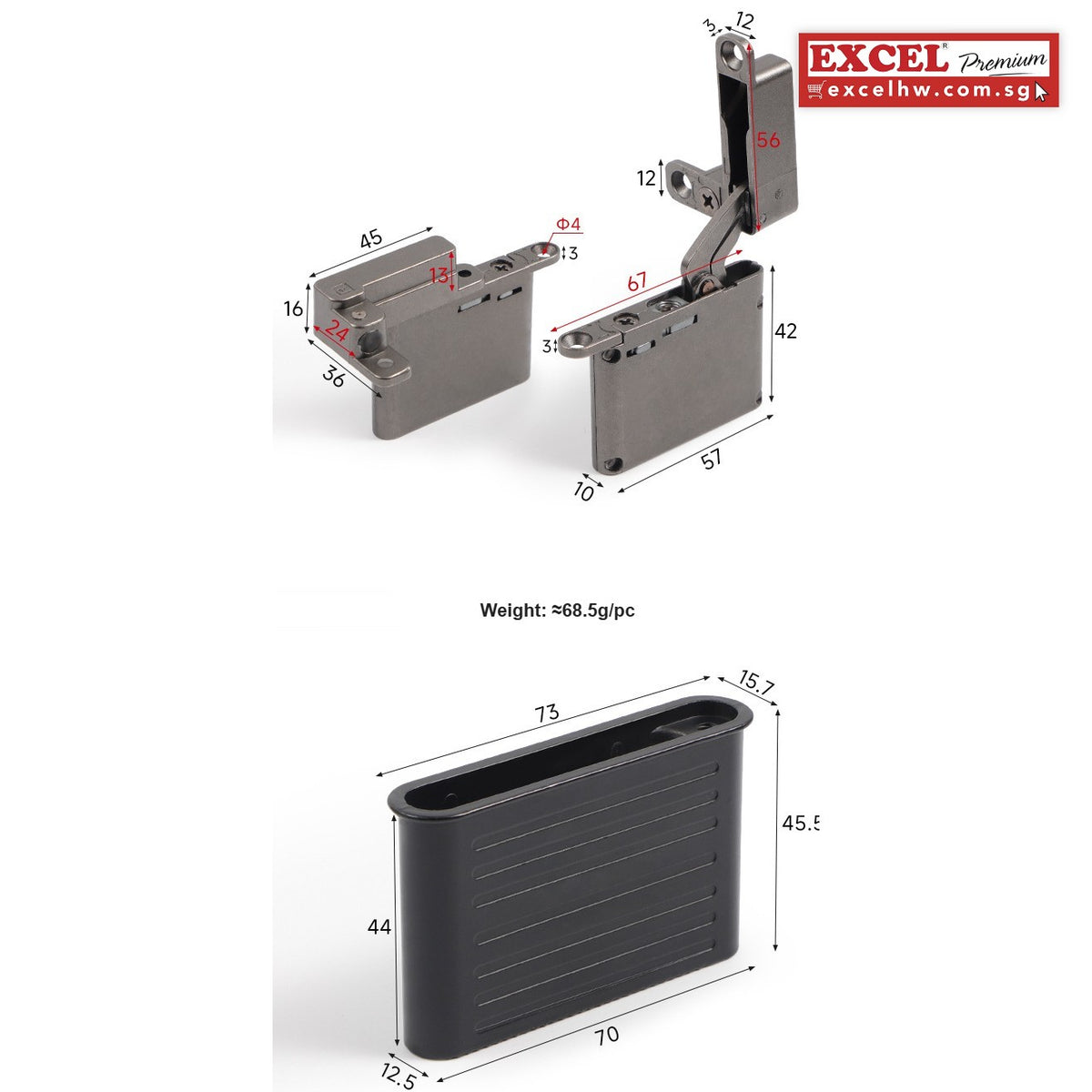

Specifications

• Door type: wooden or aluminium-frame doors
• Door thickness: 18–28 mm
• Max. door weight: 20 kg
• Max. door size: height 2100 mm, width 600 mm
• Opening angle: 105°
• Metal cup diameter: 16.5 mm
• Door clearance (L): 2.5 mm
• Door-to-cabinet-side gap (K): 3–6 mm for wooden doors; fixed 4 mm for aluminium-frame doors
• Max. cabinet side panel offset (D): 20.5 mm for aluminium-frame doors, 22.5 mm for wooden doors
• Fitting: one hinge at the top and one at the bottom of the door
• Installation Manual

How to install

• Aluminium-frame doors: cut and mill both frame ends at 45° to take the corner connectors and hinges.
• Insert the corner connector into the frame and tighten the supplied screws.
• Slide the hinge into the slot of the corner connector and tighten the supplied screws to secure it.
• Wooden doors: recess the hinge into the top and bottom edges of the door, keeping a 3–6 mm gap (K) to the cabinet side.
• Keep a 2.5 mm door clearance (L) and fix the cabinet-side plate at the top and bottom of the cabinet.

FAQ

What door thickness does it fit?

Wooden or aluminium-frame doors from 18 mm to 28 mm thick.

How heavy and how big can the door be?

Up to 20 kg, with a maximum height of 2100 mm and width of 600 mm.

Can I use it on an aluminium-frame glass door?

Yes. The frame ends are cut at 45° and joined with corner connectors, and the hinge slots into the connector. The gap to the cabinet side is fixed at 4 mm.

How far does the door open?

The door opens to 105°.
