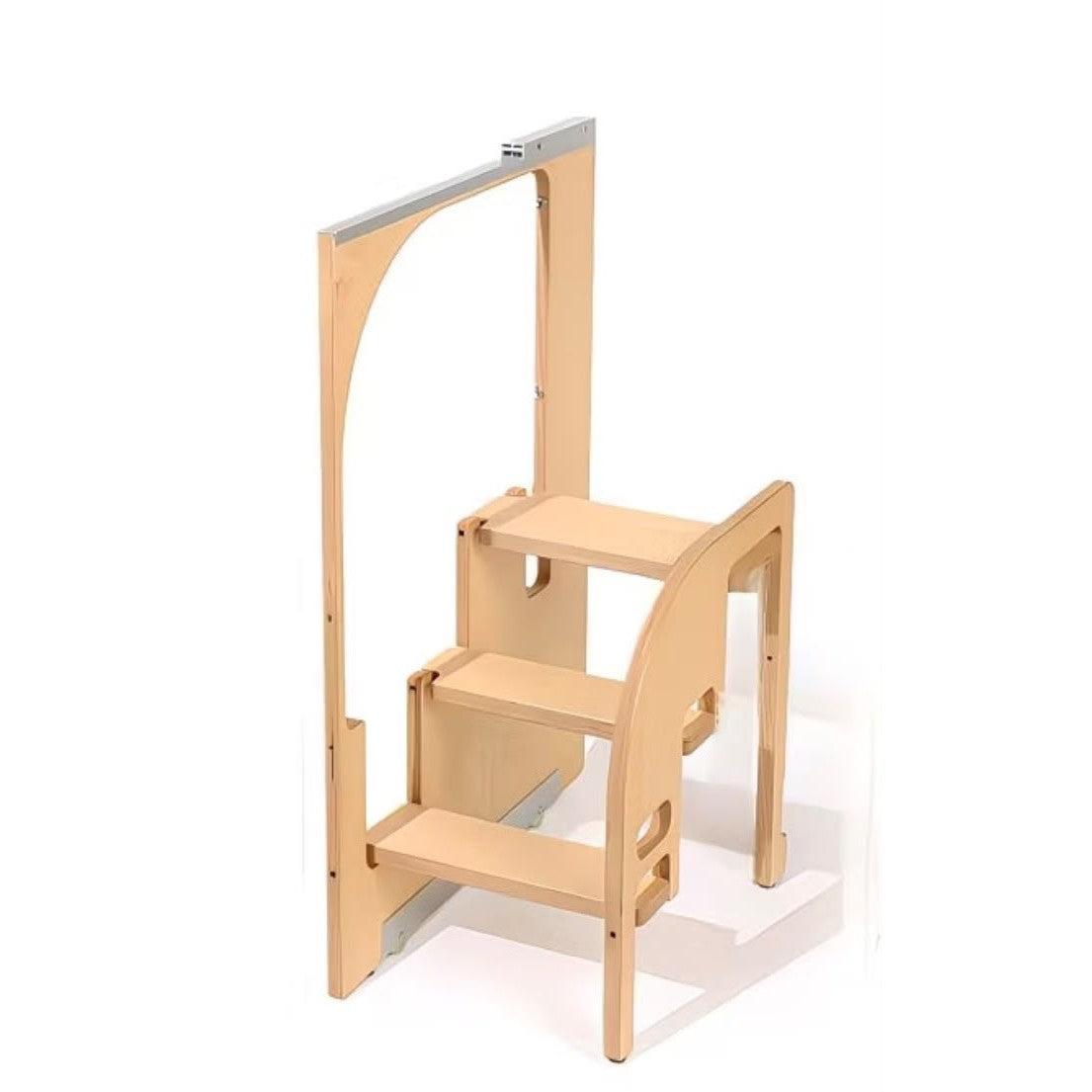

The Pedana Built-In Folding Step Ladder is a hidden, pull-out step ladder that folds flat to just 30 mm and stores upright inside a cabinet. Pull it out when you need to reach high kitchen cabinets or wardrobe shelves, then fold it away behind the panel. A 3-step version for 600 mm deep cabinets in Singapore HDB flats and condos, it suits homeowners, interior designers and contractors planning built-in carpentry.

• Folds flat to 30 mm thick, so it hides in a narrow slot inside your cabinetry
• 3-step version for 600 mm deep cabinets
• Can be fitted with or without a rebounder, with clear cabinet depths given for both
• Side-mount or top-mount installation to suit the site
• The side panel (baffle) thickness and length can be customised to site conditions

Measurements

Specifications

• Type: built-in pull-out folding step ladder
• Size: 3-step (600 mm cabinet)
• Ladder length: 580 mm
• Cabinet depth without rebounder: 598 mm
• Cabinet depth with rebounder: 624 mm
• Total height: 800 mm
• Folded thickness: 30 mm
• Optional rebounder: 26 x 29 x 11 mm
• Mounting: side mount or top mount
• Units: all measurements in mm
• Download Full Specifications

Installation

• Required depth = baffle thickness + ladder depth + rebounder (if used).
• If the cabinet is shallower than the required depth, the ladder will stick out by the difference; if deeper, it will sit back by the difference.
• Side mount: leave a 5 mm gap between ladder and baffle. Top mount: use a spacer with a 10 mm gap.
• Allow about 3 mm clearance on each side and 5 mm at the base, as shown in the drawings.
• Baffle thickness and length are set to suit actual site conditions.

FAQ

Will it fit my cabinet?

Check your cabinet depth: without a rebounder you need 598 mm. With a rebounder add 26 mm: 624 mm.

What happens if my cabinet is a different depth?

If the space is shallower than required, the ladder sticks out by the difference; if deeper, it sits back by the difference.

How tall is the ladder?

The total height is 800 mm.

Can it be mounted from the side or the top?

Yes. It can be side mounted with a 5 mm gap to the panel, or top mounted with a spacer and a 10 mm gap.
