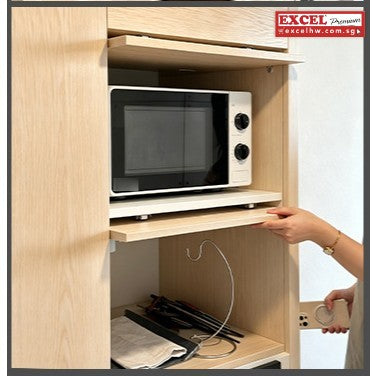

The Rientro concealed pocket door system lets a cabinet door open on its hinges and then slide back into the cabinet, so the opening stays fully clear. This cabinet pocket door system suits TV consoles, appliance cabinets, pantries and wardrobes in HDB flats and condos, and works for side-opening or lift-up doors.

• Door disappears into the cabinet: no swinging door in the way of walkways or worktops

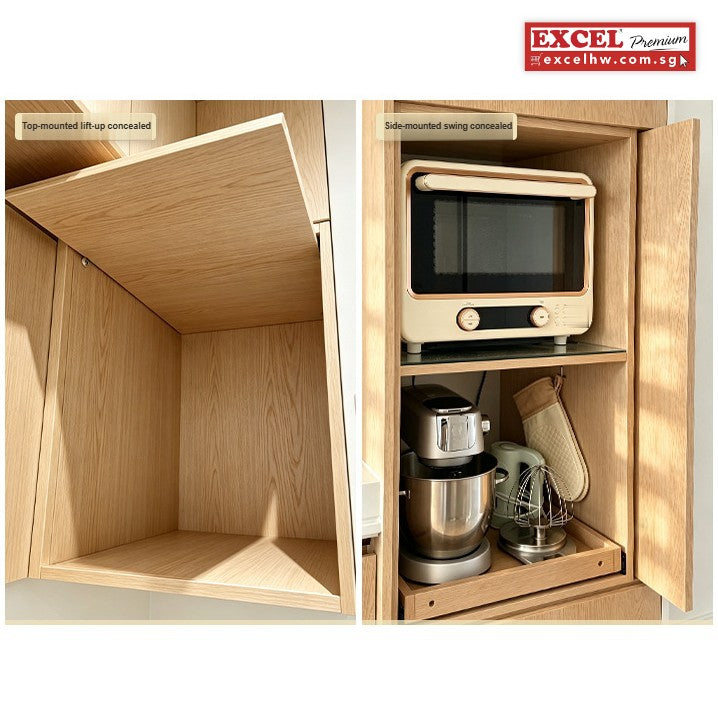

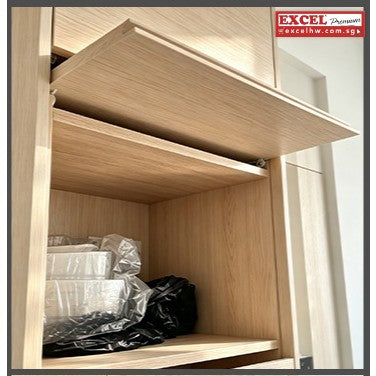

• Works on side-opening doors and lift-up (top) doors
• 515mm (20") rail length to match your cabinet depth
• Carries doors up to 15kg each, 18–20mm thick
• Made for wooden cabinet panels, with hinge gaps you can adjust after fitting

Specifications

• Rail length: 515mm (20")
• Inner cabinet depth needed: 515mm + door thickness or more
• Door slides in by: 415mm
• Door thickness: 18–20mm
• Lift-up doors: width 250–900mm, height 320–720mm
• Side-opening doors: width 320–720mm, height 250–900mm
• Max door weight: 15kg per door
• Fixed (non-sliding) section of rail: 100mm
• Rail mounting plate: 88 x 80mm
• Hinge: 40mm cup, straight arm

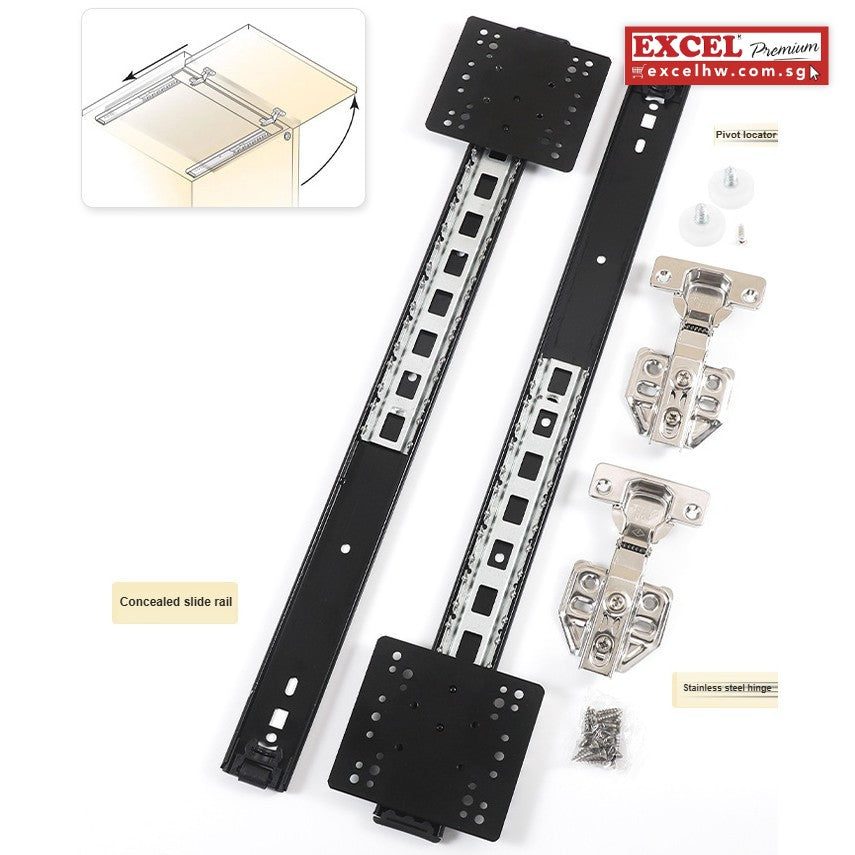

• In the box: 2 rails, 2 hinges (40mm cup, straight arm), 2 positioning wheels
• For use on wooden cabinet panels
• Installation Manual

How to install

• Make sure rail length + door thickness is less than the inner cabinet depth
• Drill two 40mm hinge cup holes in the door, 120mm from each side edge and 10mm from the top edge
• Fit a connecting board 80mm high, the same length as the door, with its hinges 15mm from the board edge and a 3mm gap to the door
• Leave 5mm clearance on the side where the rails are fitted and 3mm on all other sides
• Make sure both hinges are aligned, then fine-tune the gaps with the hinge adjustment
• Lift-up doors over 900mm wide, or side-opening doors over 900mm high, should use 2 sets

FAQ

Will it fit my cabinet?

Measure the inner depth of your cabinet. Rail length plus door thickness must be less than that depth, e.g. a 515mm rail with an 18mm door needs at least 533mm.

How heavy can the door be?

Up to 15kg per door, 18–20mm thick. For the best result, keep doors lighter and avoid the maximum sizes.

Can I use it on a lift-up door?

Yes. It works on lift-up doors 250–900mm wide and side-opening doors 320–720mm wide. Keep the door's height and width balanced, avoiding very narrow tall doors or very short wide doors.

Can it be fitted to a metal cabinet?

It is designed for wooden cabinet panels. Metal cabinets need their own fixing method.
