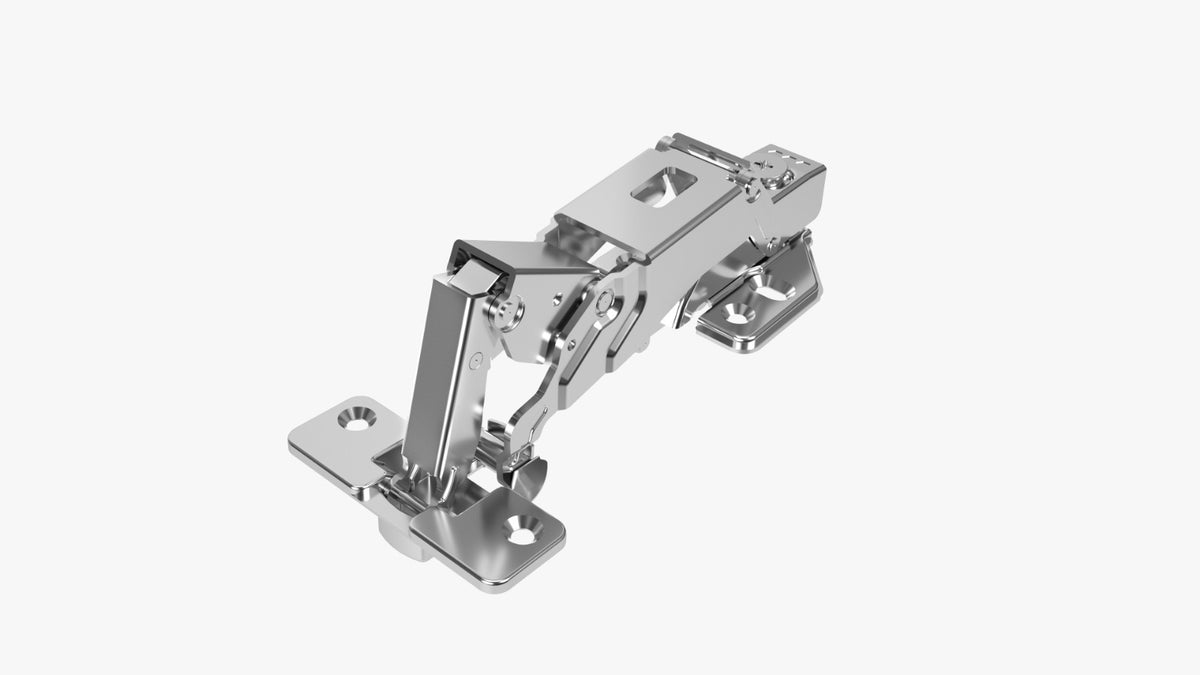

Side view of the S170 wide-angle hinge arm, open, showing the folding linkage
S170 wide-angle hinge open, seen from above with the cup and mounting plate

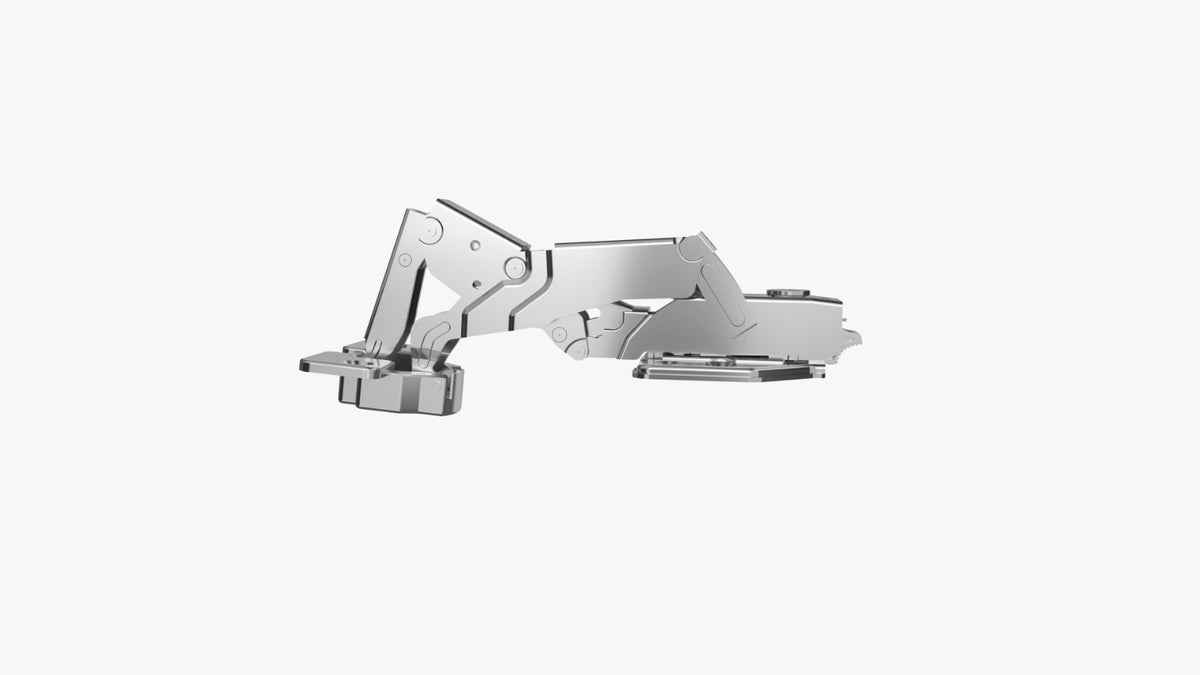

S170 wide-angle hinge in side profile, cup on the left and mounting plate on the right

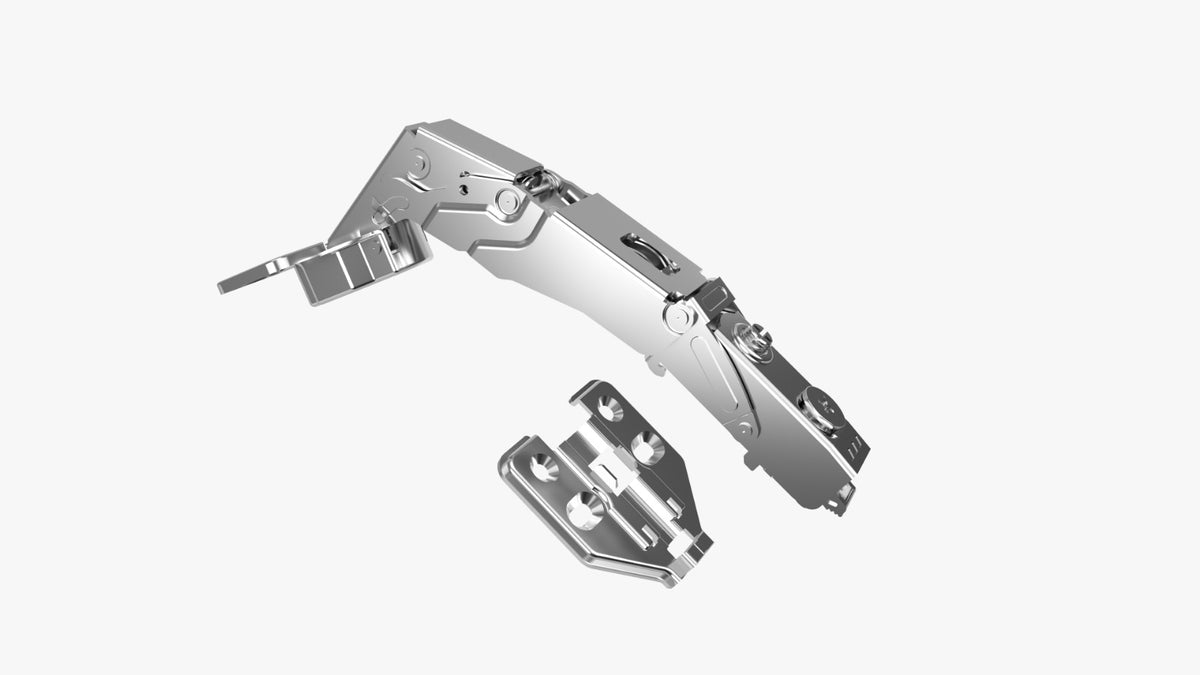

S170 wide-angle hinge with its separate adjustable mounting plate

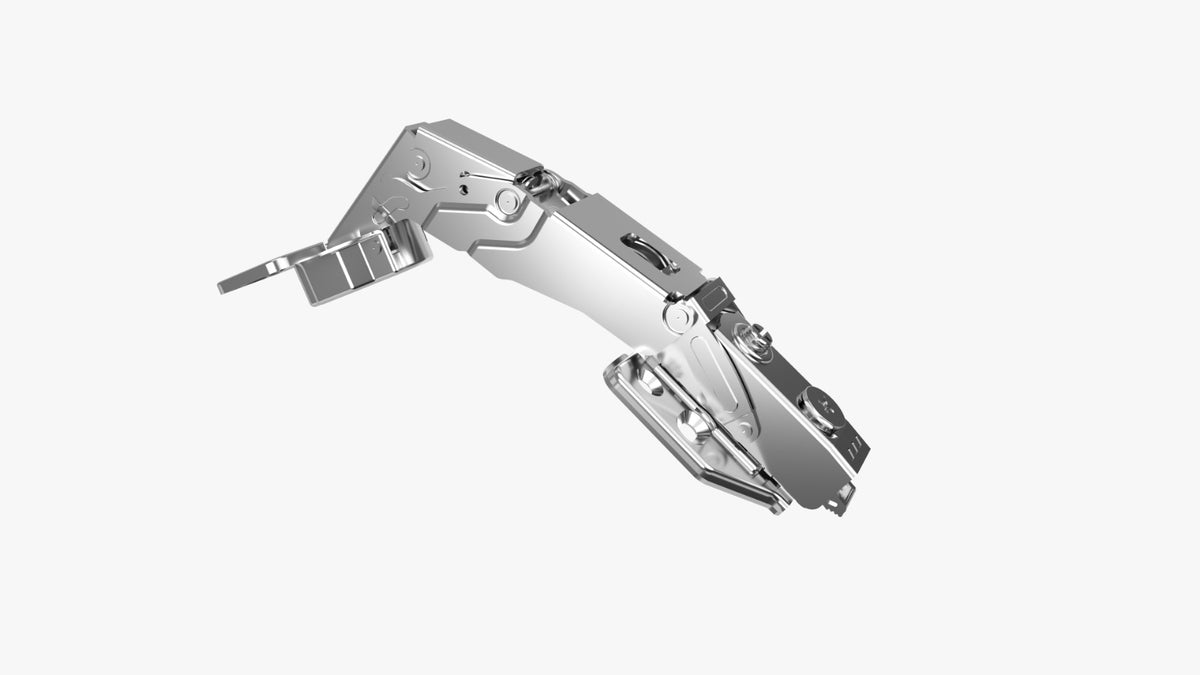

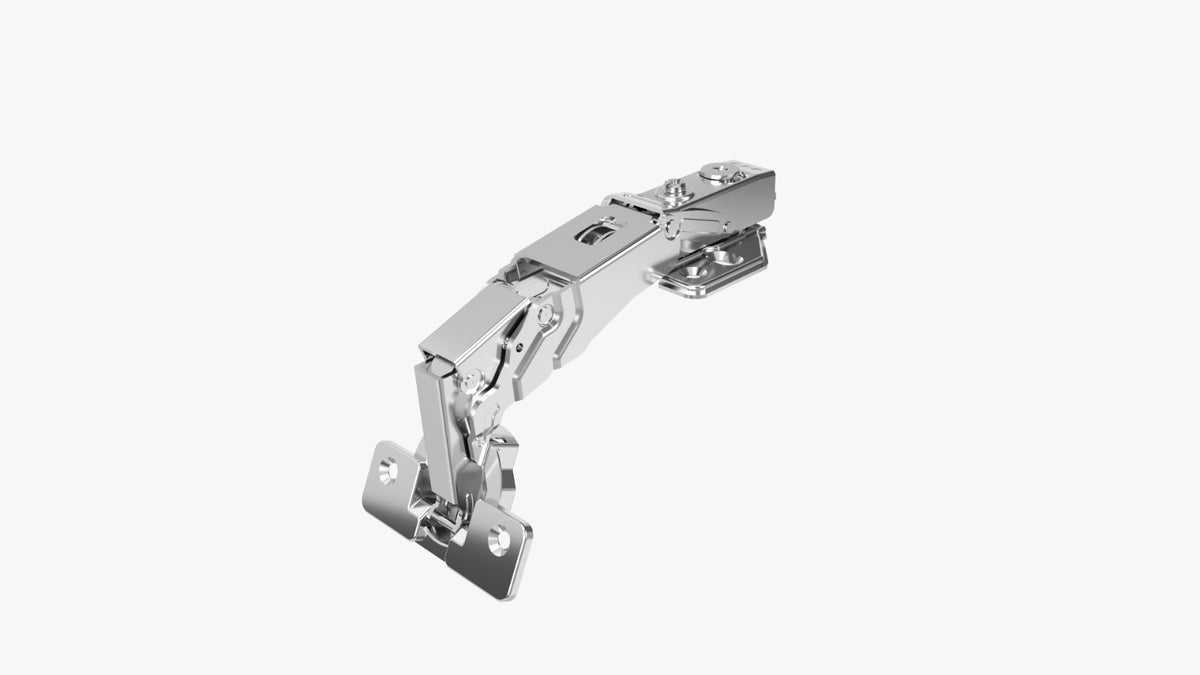

S170 wide-angle soft-closing hinge fully open, angled view from the cup end
Corner wardrobe in a grey fabric finish with both tall doors swung wide open on concealed hinges
Excel S170 155° wide-angle soft-closing hinge, silver finish, shown open on white
Side view of the S170 wide-angle hinge arm, open, showing the folding linkage
S170 wide-angle hinge open, seen from above with the cup and mounting plate
S170 wide-angle hinge in side profile, cup on the left and mounting plate on the right
S170 wide-angle hinge with its separate adjustable mounting plate
S170 wide-angle soft-closing hinge fully open, angled view from the cup end
Corner wardrobe in a grey fabric finish with both tall doors swung wide open on concealed hinges
Excel S170 155° wide-angle soft-closing hinge, silver finish, shown open on white
Side view of the S170 wide-angle hinge arm, open, showing the folding linkage
S170 wide-angle hinge open, seen from above with the cup and mounting plate
S170 wide-angle hinge in side profile, cup on the left and mounting plate on the right
S170 wide-angle hinge with its separate adjustable mounting plate
S170 wide-angle soft-closing hinge fully open, angled view from the cup end
Corner wardrobe in a grey fabric finish with both tall doors swung wide open on concealed hinges

S170 V4.0 Soft-Closing Hinge 155° with Adjustable Mounting Plate

S170-V4.0

$13.88 SGD
$13.88 SGD
Shipping calculated at checkout.
  • Adjustable pressure control (Mounting Plate) and 3D Adjustment Function
  • Pressure adjustment capability for soft closing of movable parts
  • Manufactured out of a strong alloy of steel and aluminum
  • Silver plating to prevent rust and corrosion
  • Sea salt spray & durability test approved (48 hours hours)

Excel Soft-Closing Hinge features a wide 155° opening angle for enhanced accessibility and smooth operation. Finished in durable chrome, it has passed a 48-hour salt spray test for reliable corrosion resistance. Designed for both residential and commercial use, it delivers consistent soft-closing performance with long-lasting durability.

Specifications

  • Opening Angle: 155°
  • Diameter of Hinge Cup: 35mm
  • Height of Hinge Cup: 12mm
  • Hinge Cup Screw Distance: 52mm
  • Dimension of Door: 3-7mm
  • Range of Door Thickness: 15-28mm
  • Download Full Specifications
