A cabinet door can look perfectly made and still feel disappointing the moment it shuts with a rattle, catches the next door, or sits visibly crooked. Cabinet hinge installation is where the quality of a kitchen, wardrobe or vanity becomes tangible: in the quiet close, even gaps and confident movement you use every day.
For a new-home fit-out or renovation, hinges deserve the same attention as handles, drawer systems and finishes. They determine how well your doors open around appliances, how neatly panels align, and whether your cabinetry remains easy to adjust after regular use. A premium soft-close hinge cannot compensate for an inaccurate bore position or the wrong mounting plate. The specification and installation have to work together.
Start Cabinet Hinge Installation With the Door Design
Before measuring or drilling, establish what the door is designed to cover. This determines the hinge type, mounting plate and adjustment range needed. The three common configurations are full overlay, half overlay and inset.
A full-overlay door covers most or all of the cabinet side panel, producing the clean, continuous front commonly seen in contemporary kitchens and wardrobes. A half-overlay arrangement allows two doors to share one cabinet side, while an inset door sits within the cabinet opening for a more tailored, furniture-style appearance. These are not interchangeable choices. Using an overlay hinge on an inset door can leave an obvious gap or prevent the door from closing altogether.
Opening angle matters too. Standard hinges are often suitable for general cabinet doors, but a corner cabinet, pull-out system or door beside a wall may need a wider angle, a restricted-angle hinge or a zero-protrusion design. Consider the furniture around the door, not just the door itself. A door that opens beautifully on a workbench can collide with a handle, appliance front or neighbouring panel after installation.
For integrated kitchens and coordinated wardrobes, also select the finish with intent. Concealed hinges are largely hidden when closed, but hinge arms and mounting plates remain visible inside the cabinet. A consistent finish, clean nickel plating or a considered matt-black interior system gives custom cabinetry a more resolved look.
Measure the Cup Position, Not Just the Door Edge
Most concealed European-style hinges use a 35 mm cup bored into the back of the door. The cup must sit at a precise distance from the door edge, known as the cup setback. Many 35 mm hinges use a setback that leaves roughly 3 to 5 mm of material between the cup edge and the door edge, but the correct dimension depends on the hinge model, door thickness and required overlay.
This is why a hinge manufacturer's drilling specification should always take priority over habit. Even small variations affect how the hinge arm meets the mounting plate and how much adjustment remains once the door is hung.
Mark the cup centre line carefully and keep it square to the door edge. On tall doors, place the top and bottom hinges at consistent distances from the ends, then add hinges to suit the door height and weight. A small, light upper cabinet door may need two hinges. A tall pantry door, a solid timber wardrobe door or a door carrying a mirror panel may require three, four or more.
Do not decide hinge quantity by height alone. Door weight, material, width, handle position and daily use all add load. A wide door with a long pull handle creates more leverage every time it is opened. More hinges distribute that stress and help doors retain their alignment.
Drill cleanly and stop at the correct depth
A 35 mm Forstner bit or purpose-made concealed-hinge boring bit creates a clean, flat-bottomed hole. A hand drill can work for careful one-off installation, but a drill press or hinge-boring jig gives more repeatable results across a full kitchen or wardrobe run.
Set the drilling depth before touching the finished door. The cup hole must be deep enough for the hinge to sit flush, yet not so deep that it weakens or breaks through the front face. Test the bit depth on an offcut of the same board first, especially with thinner doors, lacquered panels or veneer-faced engineered wood.
Drill at a controlled speed and keep the bit perpendicular. Tilting the drill can create an oval hole, leaving the cup loose or misaligned. Clear chips as required, then seat the hinge cup without forcing it. If the hinge does not sit flat, inspect the bore rather than tightening the screws harder.
Fix the Hinge Cup and Mounting Plate Securely
Once the cup position is correct, fix the hinge to the door using the specified screws. Pre-drilling pilot holes is a sensible precaution for solid timber, dense boards and narrow fixing zones. It reduces the risk of splitting and helps screws pull the cup down evenly.
The mounting plate on the cabinet side is equally critical. Mark its position from a consistent datum, normally the cabinet's top or bottom edge, so every door in a bank begins from the same reference point. In frameless cabinets, the plate is fitted directly to the cabinet side. Face-frame cabinetry may require a different plate or adaptor, so do not assume a standard plate will fit every construction method.
Clip-on hinge systems make the process more serviceable. The door can be mounted and removed without repeatedly driving screws into the cabinet side, which is useful during final adjustments, painting work or appliance installation. For contractors and carpenters managing multiple units, this also makes replacement and maintenance more efficient.
Use the correct mounting plate height. A plate that is too high or too low may leave you with limited adjustment, even if the door initially appears close to correct. This is one of the reasons a complete hinge system should be specified together rather than assembled from unrelated components.
Adjust for Even Gaps and a Soft Close

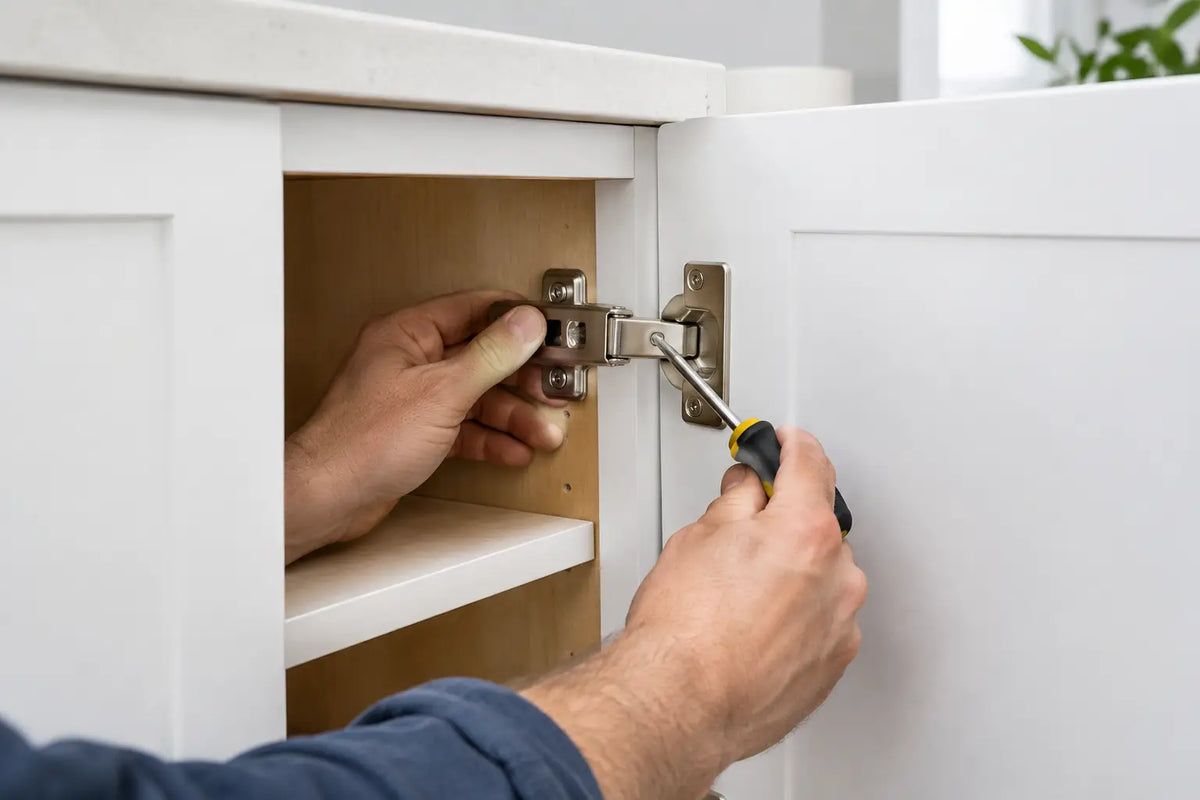

The first fit is only the beginning. Concealed hinges are designed with adjustment screws because cabinets, walls and doors are never perfectly uniform. Most modern hinges allow side-to-side, height and depth adjustment.
Begin with side adjustment to create even reveals between doors and at the cabinet edges. Then adjust height so horizontal lines remain straight across drawers, doors and adjacent tall units. Finally, adjust depth to bring the door face flush with neighbouring fronts and ensure it closes without rubbing.
Make small changes, one setting at a time. Turning every screw at once makes it difficult to identify what improved the fit or created a new issue. Close each door slowly and view the gaps from normal standing distance, not only from directly in front of the hinge.
Soft-close performance should be checked with the final door weight and handle fitted. If a light door closes too slowly or fails to pull shut, some hinge systems allow the soft-close mechanism to be reduced or deactivated on one hinge. If a heavy door slams, confirm that it has sufficient hinges and that every damper is operating. The right result is controlled movement, not a door that feels artificially stiff.
Common Installation Errors That Show Up Later
The most frustrating faults are often caused by rushing the setup. A cup drilled too close to the edge can weaken the door. One drilled too far in can restrict overlay. A mounting plate measured from an inconsistent point may create a row of doors that steps up and down, even when every hinge appears level on its own.
Poor-quality screws can also undermine a good hinge. They may strip in particleboard, snap during tightening or lose their grip after repeated adjustment. Use appropriate screws for the cabinet material and avoid overtightening, particularly with melamine-faced boards.
Another frequent issue is treating door alignment as a one-time task. New cabinetry can settle slightly after installation, and timber-based panels respond to changes in temperature and humidity. A short adjustment visit after the space is in use can keep a premium kitchen or wardrobe looking intentional rather than merely fitted.
Choose Hardware That Matches How the Cabinet Will Be Used
A hinge for a guest-room cabinet does not face the same demands as one on a busy kitchen bin unit or a family wardrobe. High-use areas benefit from dependable soft-close mechanisms, durable plating and a hinge that holds adjustment over thousands of cycles. For wet areas, material selection matters further. Suitable stainless-steel fittings and corrosion-resistant hardware are worth considering where moisture, cleaning products or coastal conditions are part of the brief.
For homeowners, it is useful to test a hinge before finalising a renovation specification. Open the door fully, close it from different angles and feel whether the motion is quiet and controlled. Hardware is best judged with your hands. At Excel Hardware, this practical comparison can be made alongside matching drawer systems, handles, pull-outs and wardrobe fittings, so the finished interior performs as one considered project.
A well-installed hinge is almost invisible when the door is closed. Yet every straight reveal, quiet close and effortless opening is the proof that the details behind the panel were chosen with care.
